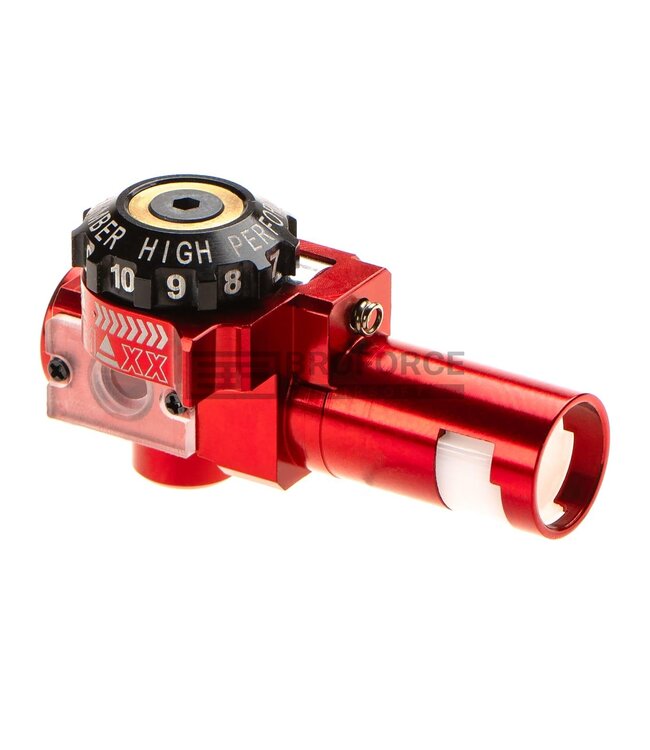

The Maxx Model CNC Aluminum Hop-Up Chamber EVO is engineered for exceptional accuracy and consistency in ASG CZ Scorpion EVO-3 Airsoft Rifles. This high-performance hop-up chamber features a precision aluminum rotary dial knob for fine hop-up adjustments, making it ideal for achieving the best performance in every shot.

Key Features:

• Precision CNC Construction: Crafted from solid aircraft-grade aluminum with tight tolerances for maximum accuracy, durability, and performance.
• Perfect Fit for ASG CZ Scorpion EVO-3: Designed specifically for ASG 2018 CZ Scorpion EVO-3 AEG and HPA versions, ensuring seamless compatibility with the system.
• Advanced Adjustments: The rotary dial knob allows for smooth and precise hop-up adjustments to tailor your shooting experience.
• Optimal Performance with R-Hop and Standard-Hop: Pre-installed with a 4mm soft flat bucking nub, perfect for both R-Hop and Standard-Hop systems, ensuring consistent and accurate shots with every BB fired. An optional 6mm nub is available.
• Self-Centering Inlet: The self-centering inlet design ensures that the hop-up unit is perfectly aligned within the 11.5mm inner bore of the ASG EVO-3 gearbox outlet, eliminating wobbling for a secure fit.
• Precision Locking Mechanism: Includes an advanced CNC Delrin locking C-clip that holds the inner barrel securely in place, preventing wobbling and twisting during use.
• Dual UV LED Tracer Module Compatible: Add the optional Dual UV LED Tracer Module (sold separately) to make your BBs glow in the dark. It operates with a voltage range of 7VDC - 15VDC, compatible with 2-4 cells LiPo or 6-13 cells NiCad batteries.

Test Results:

• The FPS can increase by 10-30 FPS over the stock setup, resulting in improved shot consistency and range.
• Note: Be sure to check your FPS after installation to ensure optimal performance.

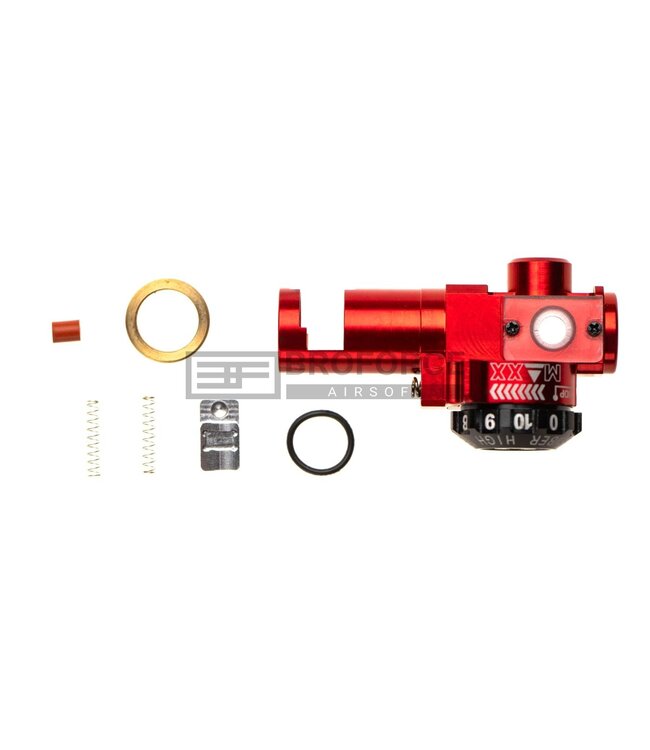

Includes:

• 1 x CNC Aluminum Hop-Up Chamber EVO Unit
• 1 x Dual UV LED Boards and Module Set (optional)
• 2 x Strong Clear Vinyl Cover Sets
• 1 x CNC Aluminum Soft Round Nub
• 1 x CNC Aluminum Soft Flat Nub (Pre-installed, 4mm)
• 2 x Steel Nub Springs
• 1 x Steel Compression Spring
• 1 x Brass Dial Bushing
• 1 x Dial O-Ring
• 1 x CNC Precision Aluminum Rotary Dial Knob
• 1 x CNC Delrin Locking C-Clip
• 1 x CNC Brass Barrel Spacer
• 1 x Brass Barrel Spacer Holder O-Ring

Technical Specifications:

• Overall Length: 47mm
• Overall Height: 26.25mm
• Inlet Diameter: 11.5mm
• Hub Outer Diameter (Fits Outer Barrel): 12mm
• Hub Inner Diameter (Fits Nozzle): 7mm
• Materials: Brass/Aluminum 6061

Compatibility:

• ASG 2018 CZ Scorpion EVO-3 AEG
• ASG 2018 CZ Scorpion EVO-3 HPA

Features & Benefits:

• Machined from Solid Aluminum: Precision engineered to provide the highest level of performance and durability for your ASG CZ Scorpion EVO-3.
• Easy Hop-Up Adjustments: The rotary dial knob allows for fine-tuning to meet your specific needs, ensuring precise hop-up control.
• Consistent Performance: The hop-up chamber is designed to deliver consistent performance, whether you're using R-Hop or Standard-Hop, with the included soft bucking nub for superior accuracy.
• Easy Installation: The self-centering inlet ensures that installation is simple and that the hop-up unit fits securely without wobbling.
• Enhanced Barrel Security: The included CNC Delrin locking C-clip prevents movement, ensuring your barrel stays in place during intense gameplay.
• Glow-in-the-Dark Tracer Ready: Add the optional UV LED Tracer Module to illuminate your BBs for nighttime play.
